LABORATORY MAGNETIC SEPARATION · INDUCED ROLL
MAGNALIFT
TYPE
Induced roll separator
PARTICLE SIZE
1–0.074 mm
AVERAGE CAPACITY
50 kg/h
MAGNETIC FIELD
Up to 18,000 gauss
PRECISION SEPARATION
SEPARATE WEAKLY MAGNETIC MINERALS WITH REPEATABLE CONTROL.
+ Monazite and other rare-earth minerals
+ Magnetic placer minerals and super-alloy powders
+ Natural and synthetic diamond fractionation
CONTROLLED LABORATORY SEPARATION
HIGH-INTENSITY SEPARATION WITH DIGITAL CONTROL.
The MAGNALIFT combines precise magnetic-field adjustment with controlled feed and roll speed, delivering repeatable separation results for mineral and powder samples.
18,000 GAUSS
MAXIMUM FIELD AT A 2 MM POLE GAP
WHY MAGNALIFT
BUILT FOR ACCURATE MATERIAL CHARACTERISATION.
01
DIGITALLY REGULATED FIELD
02
ADJUSTABLE OPERATING CONTROLS
03
CLOSED-LOOP STABILITY
OPERATING CONTROL
ADJUST THE FEED, FIELD AND ROLL SPEED FOR EACH SAMPLE.

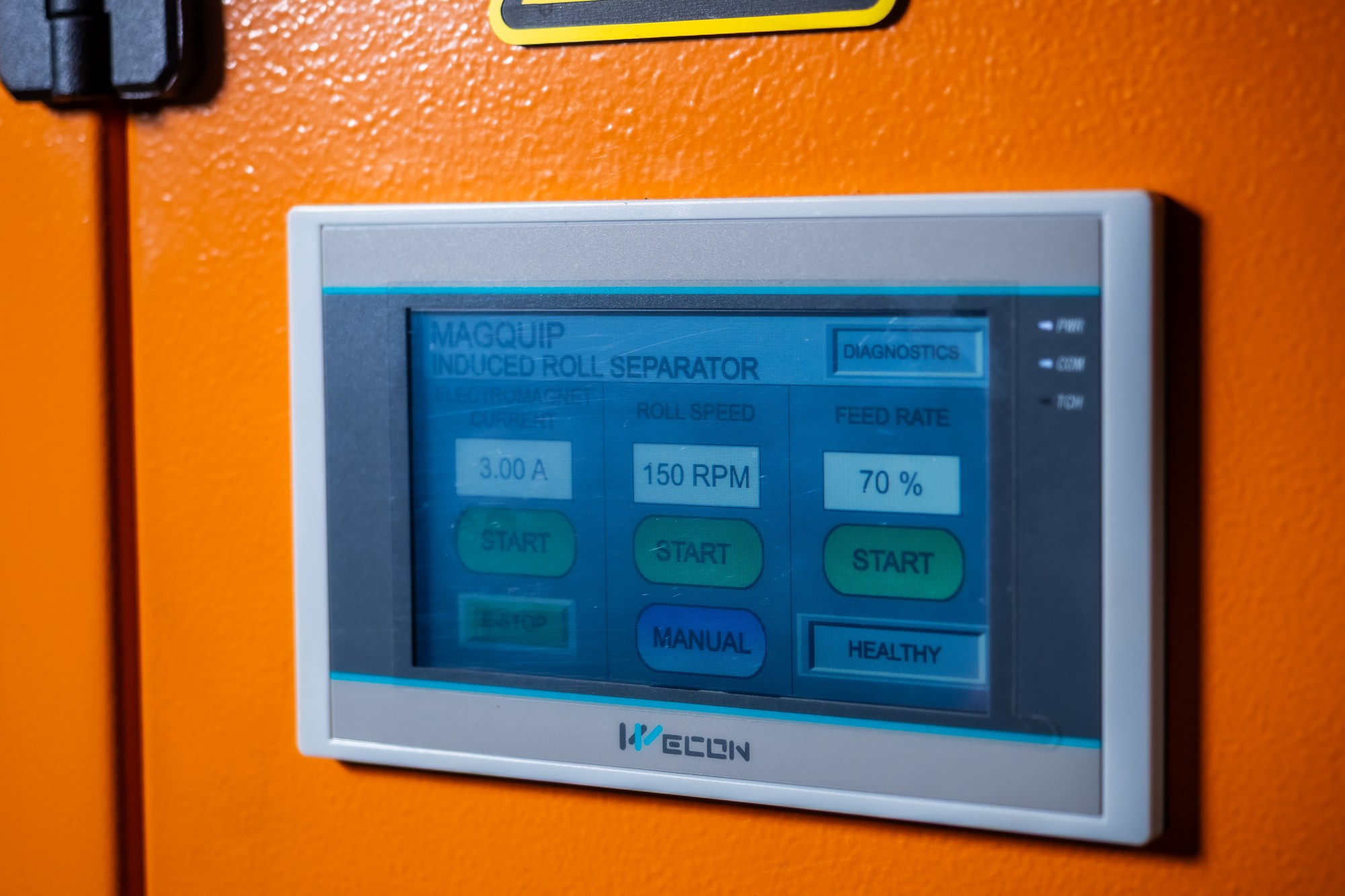

HMI CONTROL
Digital operating control
Set and monitor magnetic field strength, feed rate and roll speed from the integrated HMI for repeatable test conditions.

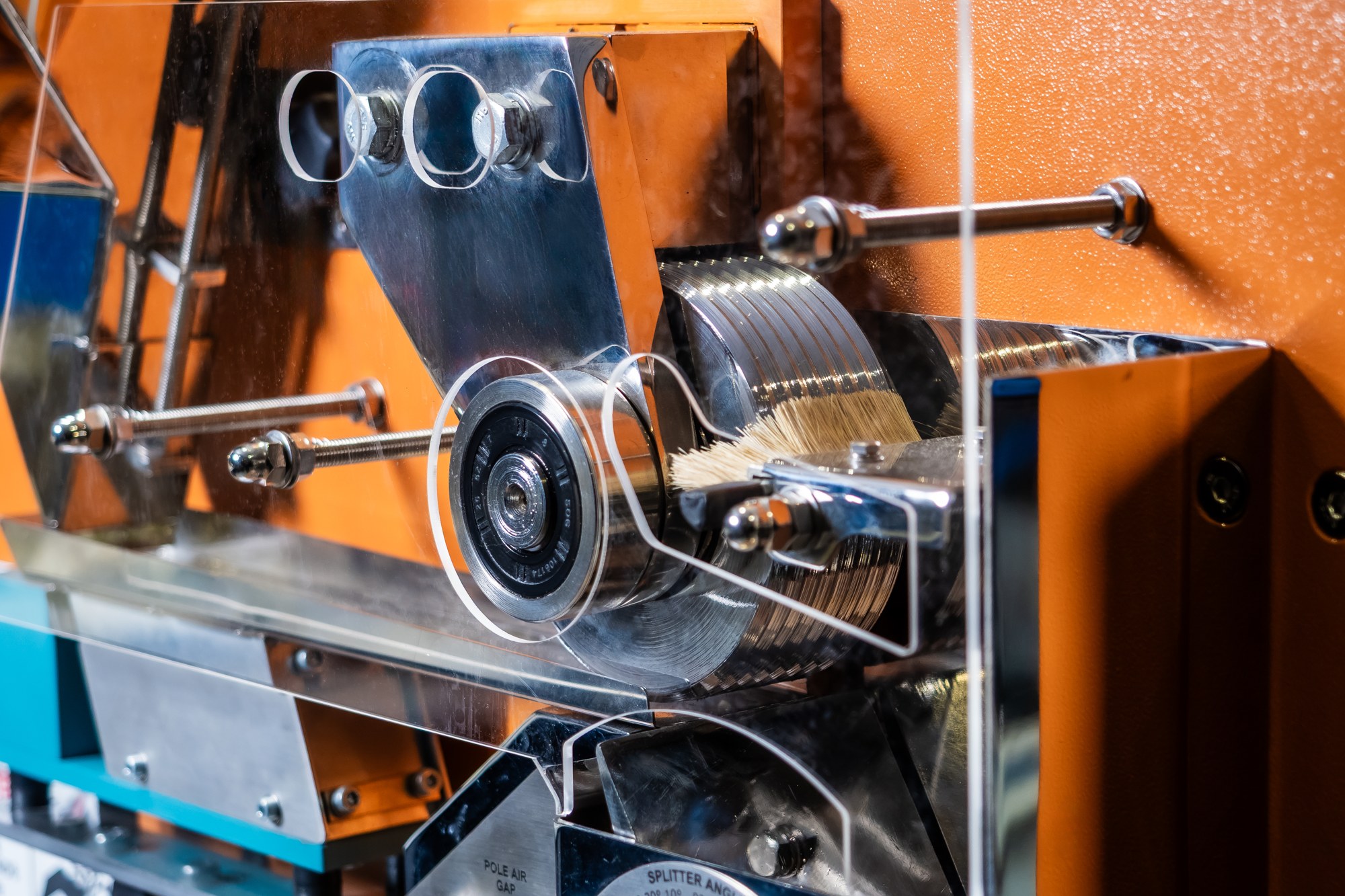

Adjustable induced roll system
LABORATORY ENGINEERING
CONSTRUCTION
ENGINEERED FOR PRECISE, REPEATABLE TESTING.
ENCLOSURE

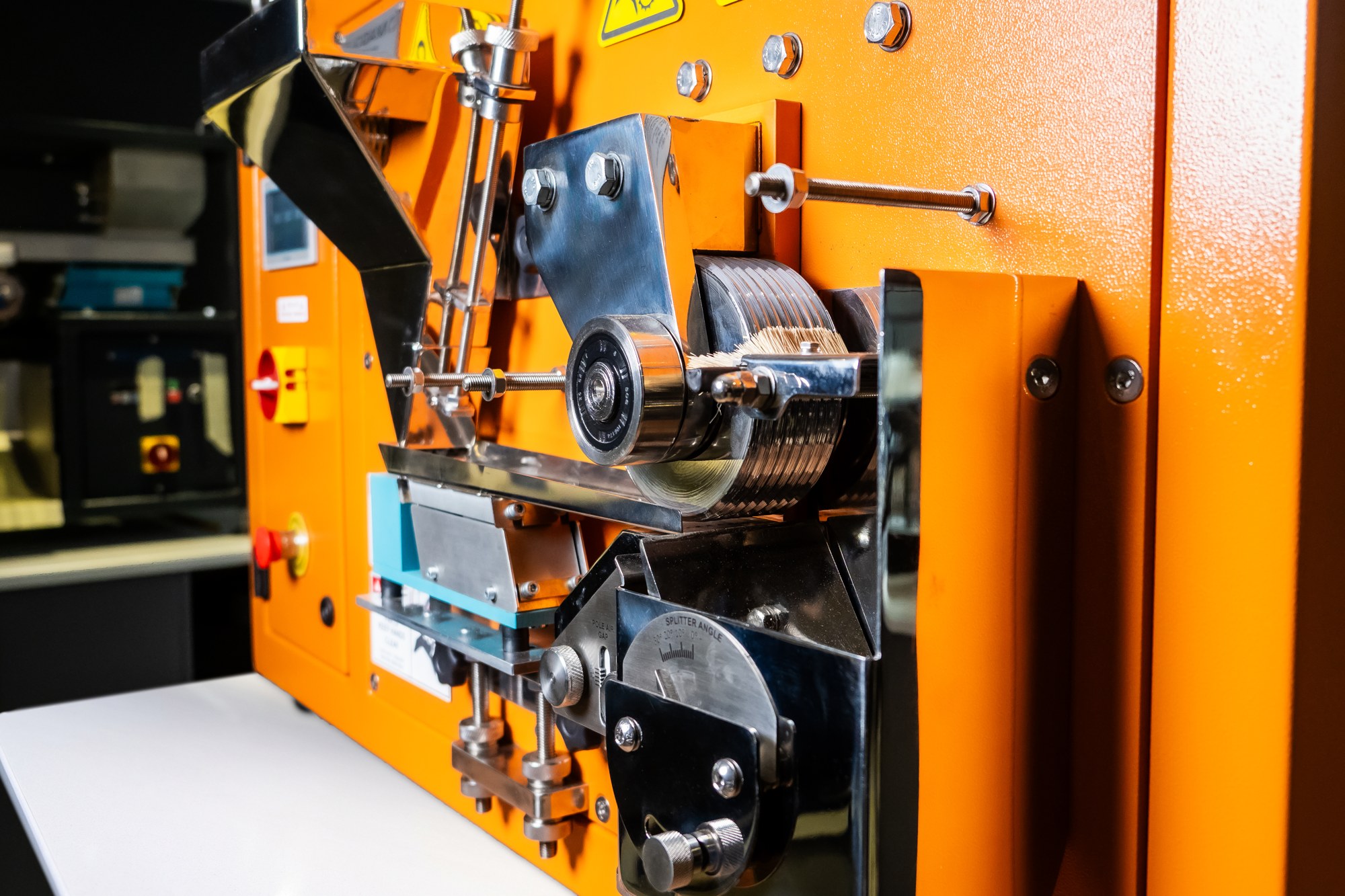

VIBRATORY FEEDER
Controlled feed presentation with an adjustable rate for consistent material flow into the separation zone.

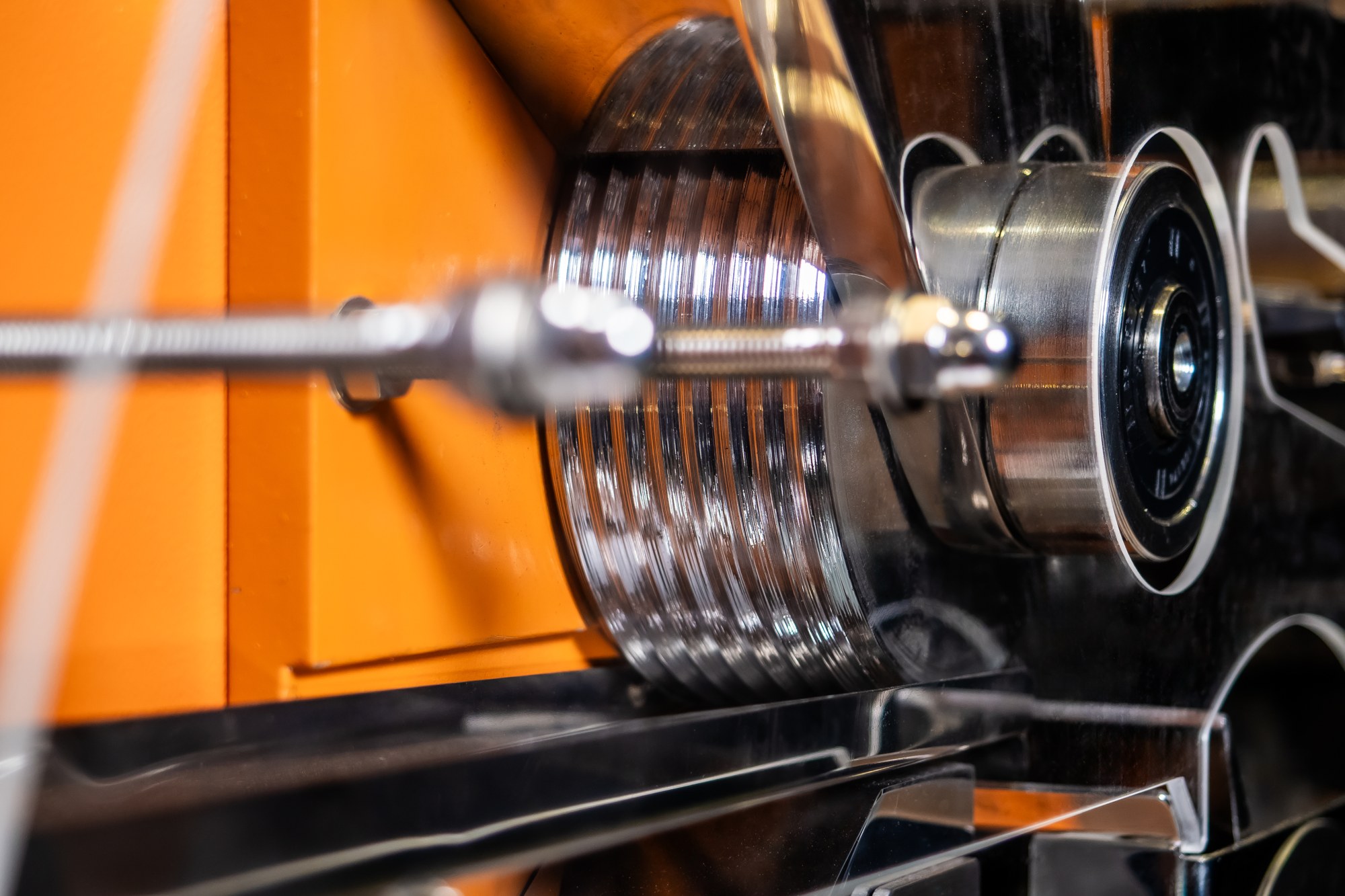

MAGNETIC ROLL
ADJUSTING POLE
SAFETY SYSTEMS
Emergency stop, mains isolator, safety guards, warning labels and coil-temperature protection are integrated into the machine.
POWER SUPPLY

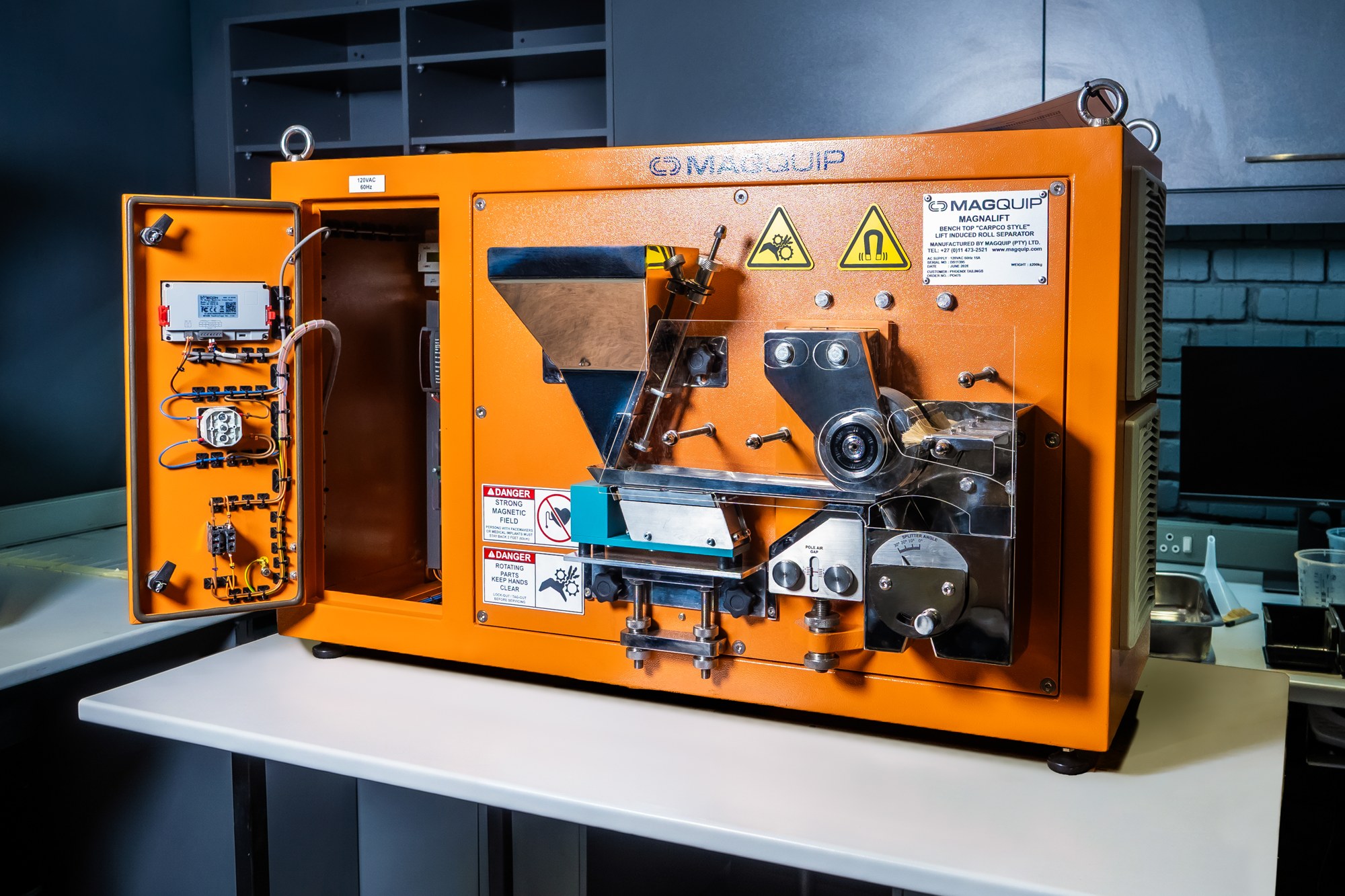

IN THE LAB
BUILT FOR CONTROLLED LABORATORY TESTING.
TECHNICAL QUESTIONS
FREQUENTLY ASKED.
The energised coil creates a diverging magnetic field across the conveyor burden. Ferrous objects are attracted out of the conveyed material and retained by the magnet or discharged by the self-cleaning belt.
In-line placement generally provides the best exposure at the head pulley. Cross-belt installation is practical where the head pulley position is inaccessible or where the discharge arrangement suits transverse cleaning.
Self-cleaning is recommended when tramp iron is frequent enough that manual cleaning would interrupt production or create an unsafe maintenance burden.
Provide conveyor width and speed, burden depth, material type and density, maximum lump size, magnet suspension height, contamination rate, installation orientation and available power supply.
Electrical and mechanical components can be specified around site classification and project requirements. Confirm the hazardous-area classification during enquiry.
